Short Description:

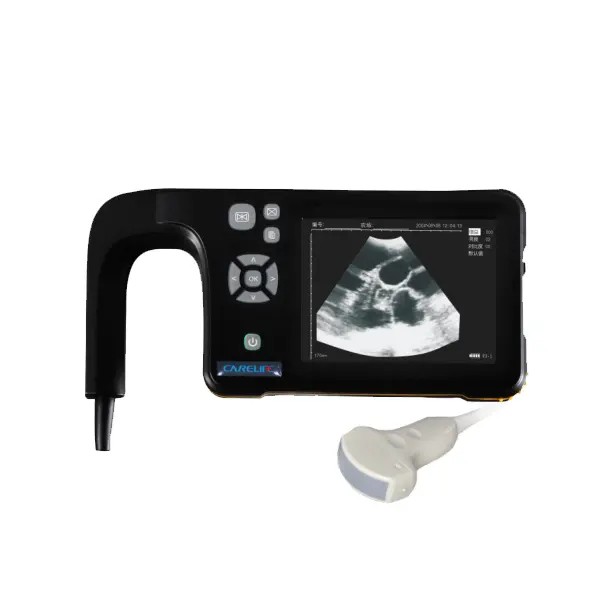

Ultrasound scanner device for pigs，sheep diagnosis.
• 5.5-inch TFT-LCD display screen
• compact and leight weight
• portable, battery operated
• robust, electric probe
• very easy to clean
• Complete waterproofing
• integrated auto-measure function to easily measure back fat
thickness
Technical specifications:
Detection depth:120-240mm
Dead zone:≤3mm
Displsy mode:B,B+B
Measure functions: Distance, circumference, area,
volume
Image gray scale: 256 levels
Probe frequency:3.5MHz
Scanning range:Convex array 60°~150°
Memory capacity: >8GB
Battery capacity: 3000mAH, 7.4V
Power consumption: 7W
Weight (incl. probe): 854 g
Overall size:240*117*40mm
Standard parts:
Main machine
Probe: (Can be choose by customers, one unit with one probe)
3.5MHz convex probe / 4.0 MHz rectal convex probe / 6.5 MHz
rectal linear probe
18650 battery/3000mAh, 4pcs
Battery charger
USB cable
Carry belt
A bottle of 250ml gel
An Operating Instruction
Screws/5
