Short Description:

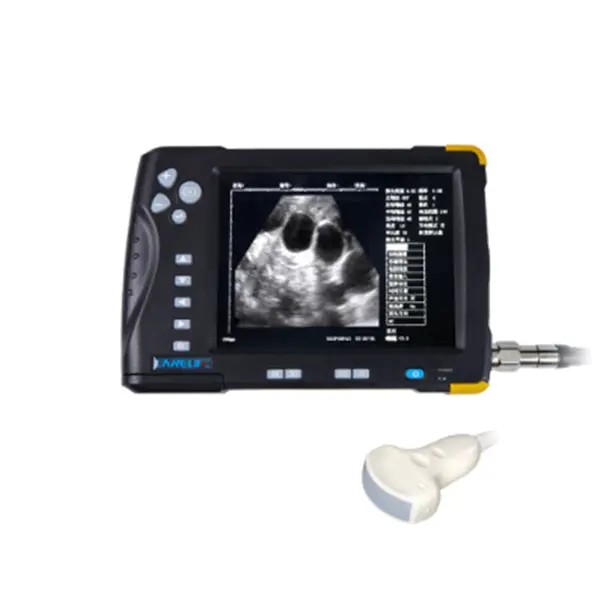

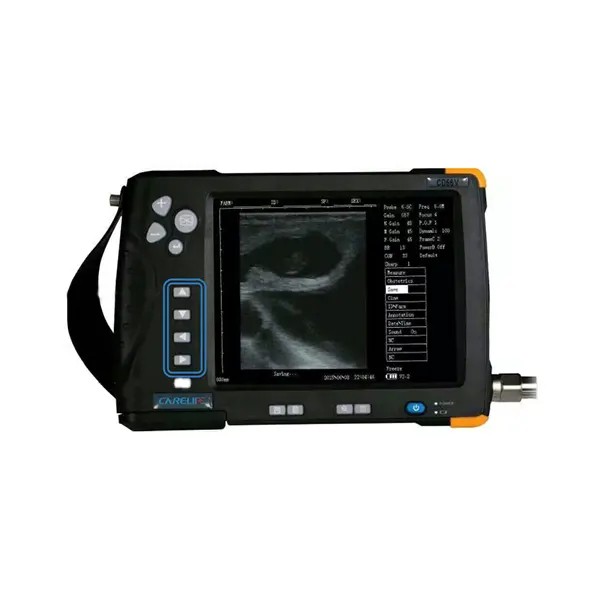

Ultrasound scanner device for pig, sheep, cattle.
• Good image quality at an affordable price
• Easy documentation of the analyses through labelling of imagesand recording of short video sequences
• A variety of probes can be employed (see accessories)
• Compact, light weight and very robust
• Complete waterproofing
• integrated auto-measure function to easily measure back fat
Technical specifications:
Monitor size: 7.0“ TFT-LCD
Detection depth:120-240mm
working frequency:2.0~10MHz
Scanning range:Convex array 60°~150°
Display modes: B, B+B, B+M, M, 4B
Image gray scale: 256 levels
Measure functions: Distance, circumference, area
Port: USB 2.0
Battery capacity: 3000 mAh/7.4V
Power consumption: 7 W
Weight (excl. probe): 950 g
Scanner dimensions: 228 x 152 x 37 mm
Voltage: 100 V-240 V

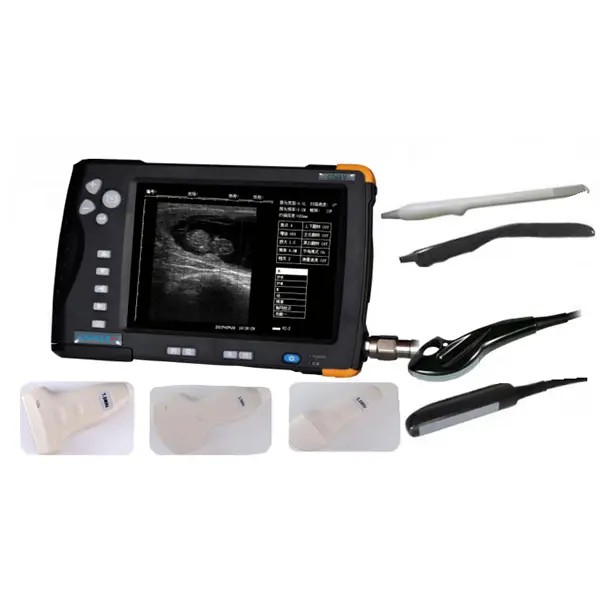

Standard parts:
Main machine
6.5MHz rectal linear probe/3.5MHz convex probe
Li-ion Battery (-7.4V/3000mAh)
AC-adaptor/Power cord/Charge cable
USB data cable
Carry belt/ Screws*5
Couplant / 250ml
Operating instruction/Packing list
Optional parts:
3.5MHz convex probe/4.0MHz rectal convex probe/5.0MHz
micro-convex probe
UP-D897 video printer/Video line/Video goggles
Sunshine hood
