Short Description:

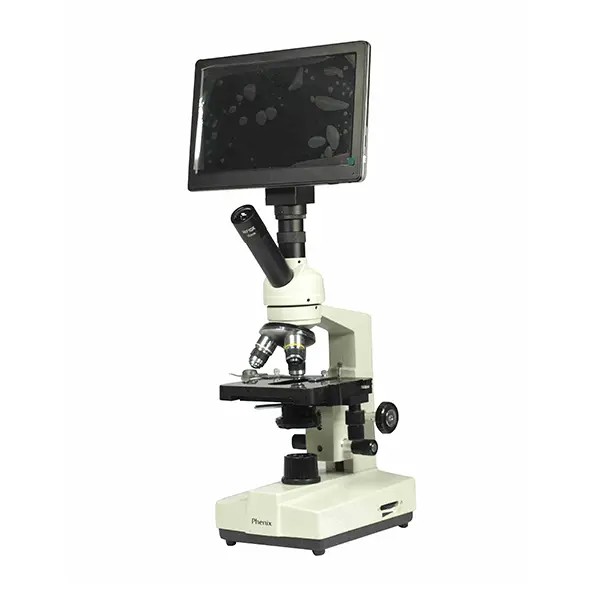

The digital microscope with TV screen is one of the essential equipment for artificial insemination laboratories.
The digital microscope is widely used in baking, drying and other temperature test of the sample. It is an essential tool for biological genetic,medical and health,environment protection,biochemical laboratory and education research. The microscope with a TV screen is easy to observe the sperm.
Technical parameters:
| Magnification | 40X-640X |
| Observing tube | Monocular TV, 30°inclining,360°rotation |
| Eyepiece | WF10X/18mm，H 16X10mm |
| Objective | Achromatic objective 4X 10X 40X |
| Nosepiece | Three holes inward |
| Objective stage:Double mechanical mobile platform | |
| Stage dimensions | 115x125mm |
| Moving range | 76X52mm |
| Focus system | Coaxial coarse without focus,Coarse tuning 20mm,fine focusing 1.3mm |
| Condenser | Abbe condenser, N.A.=1.25, variable aperture,lever lift |
| Light illumination | LED cold light illumination, high brightness, brightness adjustable, rechargeable |
| Power supply | External regulator power adapter,DC5V/2Ar |
