Product introduction:
| Size | Capacity | Division | Platform thickness | Beam height |
| 1X1m | 1t | 1/3000 | 5mm | 70mm |
| 1X1.2m | 1t/3t | 1/3000 | 5mm | 70mm |
| 1X1.5m | 3t | 1/3000 | 5mm | 70mm |
| 1X2m | 3t | 1/3000 | 5mm | 70mm |
| 1.2X1.2m | 3t | 1/3000 | 5mm | 70mm |
| 1.2X1.5m | 3t | 1/3000 | 5mm | 70mm |
| 1.2X2m | 3t | 1/3000 | 5mm | 70mm |
| 1.5X1.5m | 3t | 1/3000 | 5mm | 70mm |
| 1.5X2m | 3t | 1/3000 | 5mm | 70mm |
| 1.2X2.5m | 3t | 1/3000 | 5mm | 70mm |
| 1.5X2.5m | 3t | 1/3000 | 5mm | 70mm |
| 1.5X3m | 3t | 1/3000 | 5mm | 70mm |
| 2X2m | 3t | 1/3000 | 5mm | 70mm |
| 2x2.5m | 3t | 1/3000 | 5mm | 70mm |
| 2X3m | 3t | 1/3000 | 5mm | 70mm |
Product advantages:
-

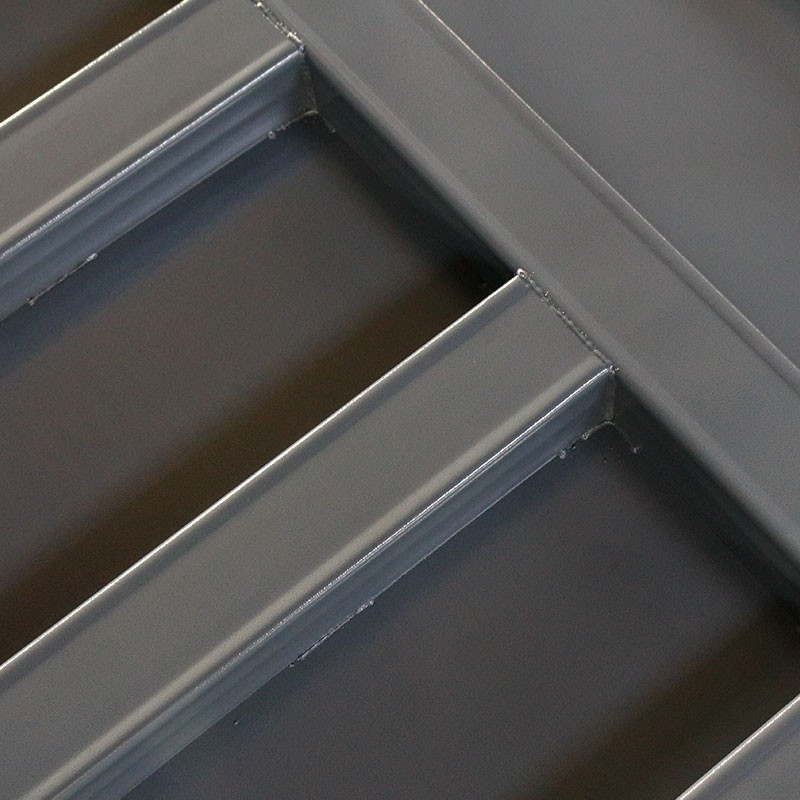

The plate surface of the scale body is made of high-quality 235 anti-skid carbon steel. The bearing beam is designed with patented stiffeners, which increases the strength of the scale body by 30%.
-
The overall installation height is 12cm. The scale body is treated by shot blasting and plastic spraying technology, which is scratch resistant, wear-resistant and corrosion resistant, and extends the service life of the scale body.
-
Built in anti rat board design, standard anti rat signal line to prevent rats from biting; High precision weighing sensor, more accurate weighing.
-
It supports customization of various sizes and optional instrument functions.
-
Industrial series platform scale for export
