A39E

An instrument with anti cheating and anti remote control function has the function of animal scale.

basic function

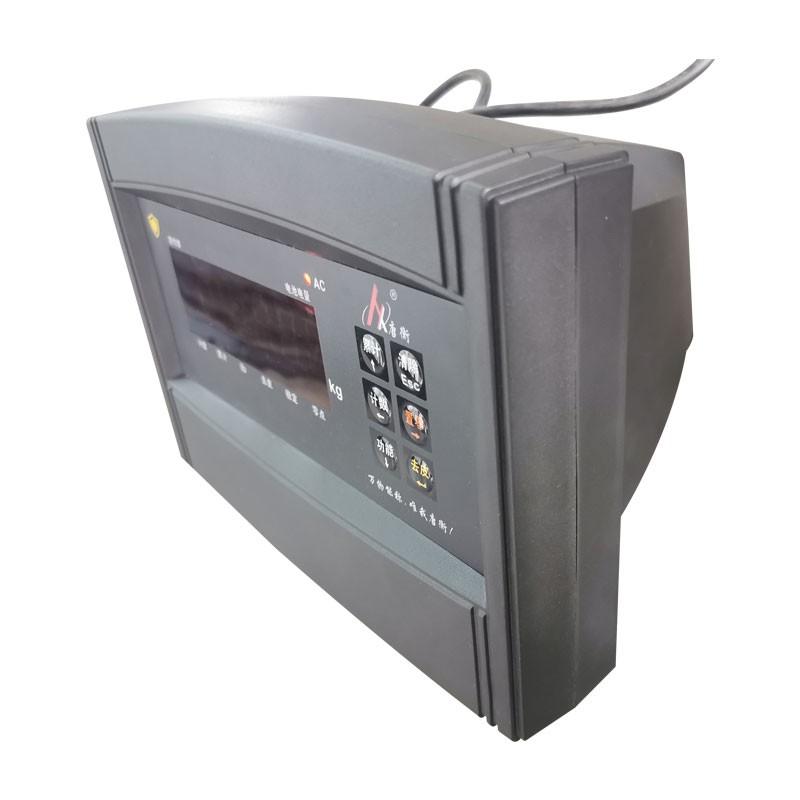

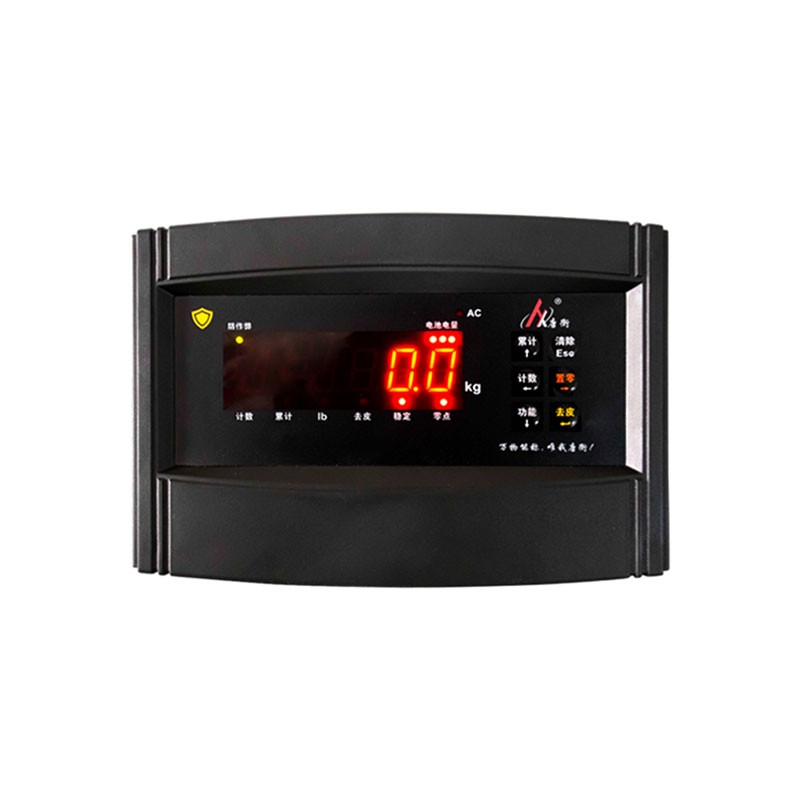

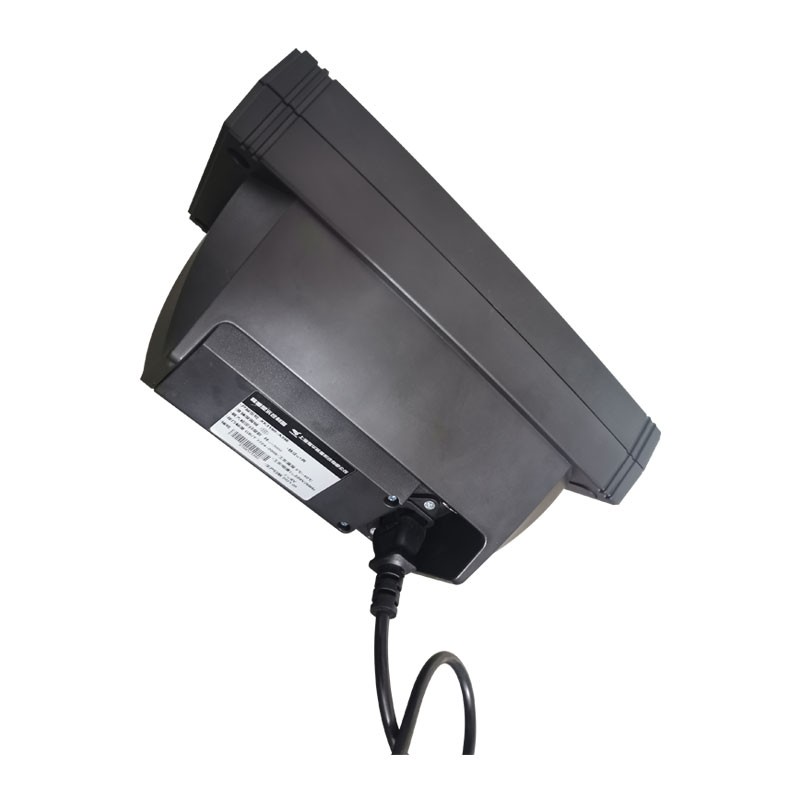

• XK3190-A39E is a "anti cheating" analog platform scale instrument. It has two main anti cheating detection methods: sensor impedance detection and electronic lead sealing. It can effectively prevent cheating devices from being installed in the weighing system and protect the metering safety of users.

• Anti cheating indication: prompt the user to complete anti cheating safety measures, and abnormal alarm prompt

• Sensor impedance type detection: prevent cheating devices from being installed on sensors, junction boxes and connecting lines

• Sensor impedance detection: prevent cheating devices from being installed on sensors, junction boxes and connecting lines

• Electronic lead sealing: to prevent the installation of cheaters inside the instrument, or to change the internal circuit of the instrument

• Simple counting, kilogram to pound, animal scale and other functions

technical parameter

• Accuracy:III

• nind=3000

• Signal source: 1-4 analog sensors (four wire system)

• A/D conversion parameter: Σ- Δ Equation, 24bit, 10 times/s

• Input signal range:-18 mV ～28mV

• Anti cheating impedance resolution:0.1Ω

• Display: 6-digit 0.8 inch digital tube, 10 status indicators

• Keyboard: 6 membrane keys

• AC power supply:AC 220V/50 Hz

• DC power supply: built-in maintenance free 6V/4AH battery

• Battery working time: 40 hours (typical value, continuous use after full charge)

• Communication interface (optional): RS232 output, can be connected to computer, large screen, POS58 thermal micro printer

• Bluetooth interface (optional): Bluetooth 2.0 slave mode, PIN=1234 (without RS232 output)

• Switching value (optional): 1-way transistor OC gate output, max 100mA/30V

• Overall dimensions:242×185×164

•
