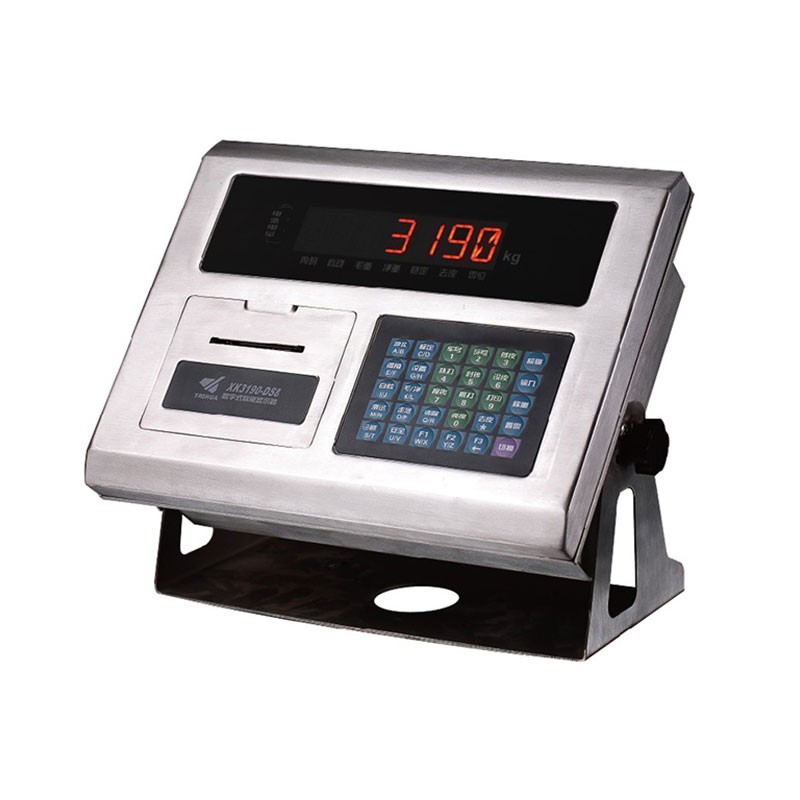

DS8

Digital transmission instrument for truck scale.

The instrument can specifically display the sensor status for easy maintenance; High accuracy.

Digital transmission is not affected by transmission distance.

With the function of printing receipts

It can be connected with a large screen and a computer.

XK3190-DS8 display is applicable to the static weighing system with 1~16 digital sensors, such as electronic ground scale, electronic truck scale, and static track scale.

Product features:

• Equipped with various anti cheating functions

• Equipped with electronic lead sealing function

• New encryption method of electronic seal

• It has multiple diagnosis modes and is easy to debug

• Optional Ethernet, 4-20mA, switching value and other expansion interfaces

• Indicator LED digital tube display, which can store and print complete Chinese license plate number

• It has multiple diagnosis modes and is easy to debug

• Optional Ethernet, 4-20mA, switching value and other expansion interfaces

• Indicator LED digital tube display, which can store and print complete Chinese license plate number

Basic functions:

• Multiple Yaohua protocol digital sensors can be connected

• Automatic/semi-automatic/manual angle difference correction

• Digital sensor communication address modification function

• Single sensor data viewing function

• Automatic switching of the second gear indexing value;

• Nonlinear correction function and calibration error correction function

• sleep timer

• It is equipped with two independent full duplex UARTs, which are used to connect computers, PLCs and other equipment. A variety of communication methods are optional.

• Equipped with large screen communication port of current loop; Equipped with standard parallel printing interface

• Weighing record storage/inspection/deletion/power failure protection

• It can store 1024 groups of vehicle brands and tare weights, 256 groups of article numbers, and 4096 groups of weighing records

• Various parameters in the instrument can be backed up and restored, which is reliable and practical

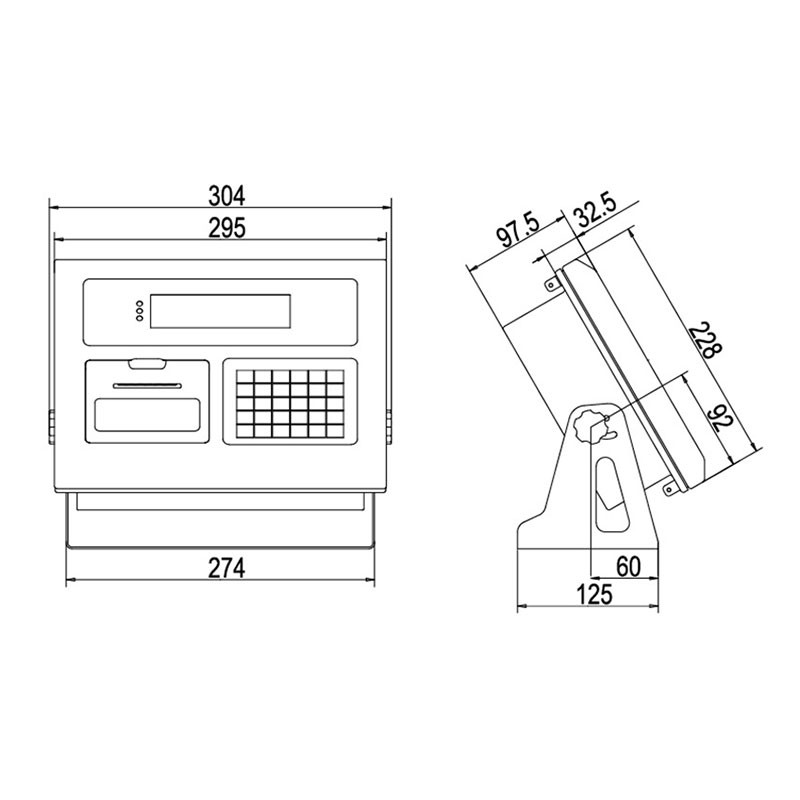

Technical parameters:

Digital sensor connection

• Connection mode: RS485 mode, four six wire compatibility

• Communication distance:about 1000m

• Number of connections:1~16

• Sensor communication protocol: Shanghai Yaohua

• Sensor power supply:DC 10V，0.8A（Max）

display

• Display mode: 7-bit super bright indicator shaped LED digital tube, 10 status indicators, 5-level brightness adjustable

• Clock: real-time clock, automatic leap year and leap month, without interruption

Large screen interface

• Signal: 20mA current loop, serial output, transmission distance: ≤ 2000m

Print interface

• Connectable wide line printer:LQ-300K、KX-P1131、KX-P1121 、DS-300

• Heat sensitivity micro typing:POS58、T58D Optional panel type micro printer

Serial communication interface

• Standard configuration:1、RS232/RS485self-adaption；2、RS232

• Power Supply:AC187～242V；49～51HZ

• DC power supply: external 12V battery power supply

•
