Product Description
Principle of Ventilation exhaust fans system
Ventilation exhaust fans system is designed according to air convection and negative pressure ventilation principle. When it is installed in poorly ventilated areas,Ventilation exhaust fans system can use negative pressure plant to remove the stagnant heat, odor and smoke in the shortest time. Also quickly inlet fresh air indoor, achieving the purpose of ventilation and cooling to improve the environment of the workshop, cooling ventilation effect up to 90%-97%.

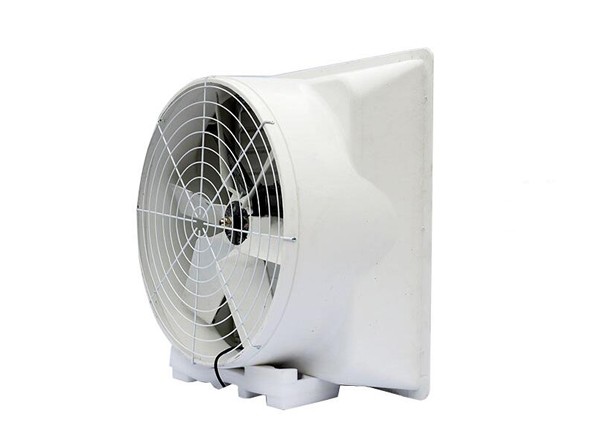

Ventilation exhaust fans system
Ventilation exhaust fans system Feature:
Host is made of high-quality glass fiber reinforced plastics, with super anti-corrosion, anti-UV, anti-aging characters. Never rust, long service life.
A reasonable design of the horn, low noise,strong wind.
8-12 extremely energy-saving motor, IP55 insulation grade F, greatly reducing the
Ventilation exhaust fans system operating costs of the machine.
Motor directly linked fan to rotate, completely solve the belt loosening and aging problem of traditional belt-type fan.
PVC shutters, anti-oxidation, lightweight, easy to operate, preventing backflow of air.
6 FRP blades, no deformation, no fracture, more beautiful and durable.
Ventilation exhaust fans system is designed according to air convection and negative pressure ventilation principle. When it is installed in poorly ventilated areas,Ventilation exhaust fans system can use negative pressure plant to remove the stagnant heat, odor and smoke in the shortest time. Also quickly inlet fresh air indoor, achieving the purpose of ventilation and cooling to improve the environment of the workshop, cooling ventilation effect up to 90%-97%.
Ventilation exhaust fans system
Ventilation exhaust fans system Feature:
Host is made of high-quality glass fiber reinforced plastics, with super anti-corrosion, anti-UV, anti-aging characters. Never rust, long service life.
A reasonable design of the horn, low noise,strong wind.
8-12 extremely energy-saving motor, IP55 insulation grade F, greatly reducing the
Ventilation exhaust fans system operating costs of the machine.
Motor directly linked fan to rotate, completely solve the belt loosening and aging problem of traditional belt-type fan.
PVC shutters, anti-oxidation, lightweight, easy to operate, preventing backflow of air.
6 FRP blades, no deformation, no fracture, more beautiful and durable.
Ventilation exhaust fans system
Product Parameters
| Size | Voltage | Motor power | Air flow | Fan blade speed | Weight | Noise |
| 220~380V | 1.1KW-12P | 44500 m3/h | 650 rpm/min | 67KG | <68db | |
| 1260X1260X560mm | 220~380V | 0.75KW-10P | 40000 m3/h | 550 rpm/min | 60KG | <68db |
| 1060X1060X560mm | 220~380V | 0.55KW-10P | 28000 m3/h | 550 rpm/min | 55KG | <68db |
| 860X860X480mm | 220~380V | 0.37KW-8P | 13000 m3/h | 450 rpm/min | 40KG | <68db |
